Usage : for measuring the ISO Brightness , colour , colour difference , fluorescence and opacity of paper.
Definition : Brightness is a commonly used industry term for the numerical value of the reflectance factor
of a sample with respect to blue light of specific spectral and geometric characteristics. This method requires an
instrument employing 45° illumination and 0° viewing geometry with the illuminating and viewing beams adjusted
so that translucent materials are evaluated on an arbitrary but specific scale .
the directional reflectance is measured at 457 nm.
Standardization : ISO 2469, 2470, 3688, 5631, 9416, 11475, 11476, 22891, 22754 TAPPI T519, T525, T527, (T534,
T560, T567) DIN 53145, 53146, 53147, 54500 Paptac E1, E2 SCAN G3, 5, 8, 66, 71, 72, each/P JIS P8148 etc.

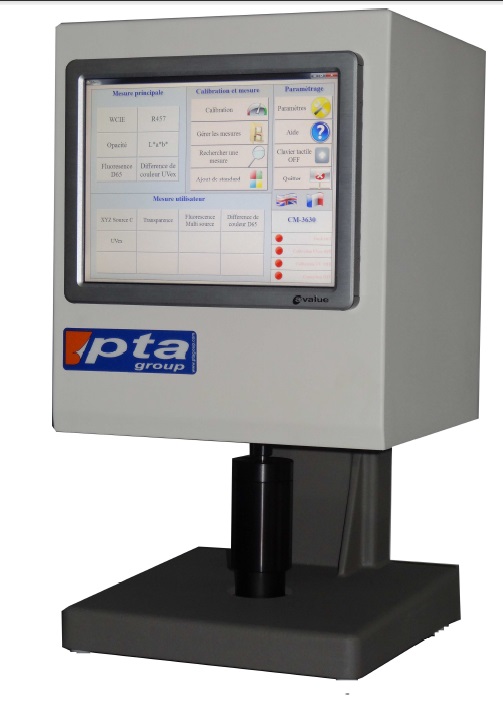

Device Description : NOVICOLOR a modern , easy to use and feature rich Color-QC application for paper and
packaging industries and automotive supply chain members. It enables customers to analyze report and visualize
accurate colour QC results . it incorporates the indices , tolerances methods , graphs and sight sources D65 , c UV
ex.. the device either comes with a built in touch screen or can be connected with a PC.
Test Description : the device is easy to control due to its touch screen and windows use of program. The data files
can be saved directly on the computer. A printer can be connected to the USB port or the device enabling direct
printout. The light source is filtered according to D65 , C, and UV ex level.
